变分自编码器

---

import tensorflow as tf import numpy as np import matplotlib.pyplot as plt %matplotlib inline

加载手写数据集

(train_image,_),_ = tf.keras.datasets.mnist.load_data()

模型架构

1.编码器 -> u,var
2.u,var -> 隐含变量
3.隐含变量 -> 重构图像

数据归一化

train_image = train_image/255

数据shape

train_image.shape
(60000, 28, 28)

数据扁平化

train_image = train_image.reshape(-1,28*28)#扁平化

数据shape

train_image.shape
(60000, 784)

转换数据类型

train_image = train_image.astype(np.float32)#转换类型

创建dataset

dataset = tf.data.Dataset.from_tensor_slices(train_image)

数据shuffle，batch

dataset = dataset.shuffle(len(dataset)).batch(128)

创建VAE模型

class VAE_model(tf.keras.Model):
   def __init__(self):
       super(VAE_model,self).__init__()
       self.lin_1 = tf.keras.layers.Dense(400)#784取中间值
       self.lin_2 = tf.keras.layers.Dense(20)
       self.lin_3 = tf.keras.layers.Dense(20)
       self.lin_4 = tf.keras.layers.Dense(400)
       self.lin_5 = tf.keras.layers.Dense(784)
   def encode(self,x):# 编码器
       h1 = tf.nn.relu(self.lin_1(x))
       return self.lin_2(h1),self.lin_3(h1)  # u ,log(var*var)方差的对数
   def reparameters(self,mu,logvar):
       std = tf.math.exp(0.5*logvar)#幂运算  e的幂运算      exp() 方法返回x的指数,ex
       eps = tf.random.normal(std.shape,mean=0.0,stddev=1.0)#默认生成标准正态分布
       return eps*std + mu#均值为mu 方差为std的正态分布
   def decode(self,z):
       h4 = tf.nn.relu(self.lin_4(z))#得到解码器的中间变量
       return tf.sigmoid(self.lin_5(h4))#输入图像取值范围0~1,所以输出图像要0~1即sigmoid激活
   def call(self,x):
       mu,logvar = self.encode(x)#对输入进行编码得到mu、logvar
       z = self.reparameters(mu,logvar)#得到隐含变量z
       return self.decode(z),mu,logvar# 进行界面


exp() 方法返回x的指数：$$e^x$$

创建损失函数

def loss_fn(recon_x,x,mu,logvar):
    BCE_loss = tf.keras.losses.binary_crossentropy(x,recon_x)#计算逻辑回归损失值，交叉熵损失
    KLD_loss =  -0.5*tf.reduce_sum(1 + logvar - tf.pow(mu,2) - tf.exp(logvar))
    return BCE_loss+0.0001*KLD_loss  #BCE_loss重建损失，比重大生成图像接近原图越清晰       KLD_loss 越大越接近正态分布损失，生产效果越差

创建optimizers

opt = tf.optimizers.Adam(learning_rate=0.0001)

创建metrics.Mean

epoch_loss_avg = tf.keras.metrics.Mean('train_loss')

设置训练每步

def train_step(model,images):
    with tf.GradientTape() as t:
        pred_img,mu,logvar = model(images)
        loss_step = loss_fn(pred_img,images,mu,logvar)#计算预测与真实值之间的交叉熵   参数:(正确,预测) from_logits默认为False，输出没有激活则True
    grads = t.gradient(loss_step,model.trainable_variables)#t.gradient：梯度(计算损失值与可训练参数之间的梯度)      参数：(loss,可训练参数)
    opt.apply_gradients(zip(grads,model.trainable_variables))#根据计算损失值与可训练参数之间的梯度来优化可训练参数
    epoch_loss_avg(loss_step)
    return pred_img

模型训练

创建VAE模型对象

model = VAE_model()

创建train_loss_results列表

train_loss_results = []

设置epochs

num_epochs = 30

训练

for epoch in range(num_epochs):
    for imgs in dataset:
        gen_imgs = train_step(model,imgs)
        print(epoch)
        train_loss_results.append(epoch_loss_avg.result())
        print('Epoch:{}:loss:{:.3f}'.format(epoch+1,epoch_loss_avg.result()))
        epoch_loss_avg.reset_states()
    for i in range(64):
        plt.subplot(8,8,i+1)
        plt.imshow(gen_imgs[i].numpy().reshape(28,28),cmap='gray')
        plt.xticks([])
        plt.yticks([])
        plt.axis=('off')
    plt.show()

应用VAE

随机生成数据

    test_mu = np.linspace(-0.9,0.9,2000).reshape(100,20).astype(np.float32)#随机生成[-0.9~0.9]的2000条数据
test_logvar = np.linspace(-0.9,0.9,2000).reshape(100,20).astype(np.float32)

test_mu.shape
(100, 20)

编码

test_img = model.decode(model.reparameters(test_mu,test_logvar))
test_img.shape    #TensorShape([100, 784])
test_img = test_img.numpy().reshape(-1,28,28)
test_img.shape    #(100, 28, 28)

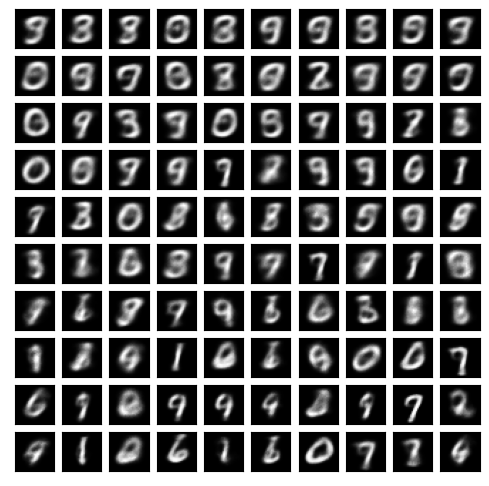

绘制图片

plt.figure(figsize=(6,6))
for i in range(100):
        plt.subplot(10,10,i+1)
        plt.imshow(test_img[i],cmap='gray')
        plt.xticks([])
        plt.yticks([])
        plt.axis=('off')
